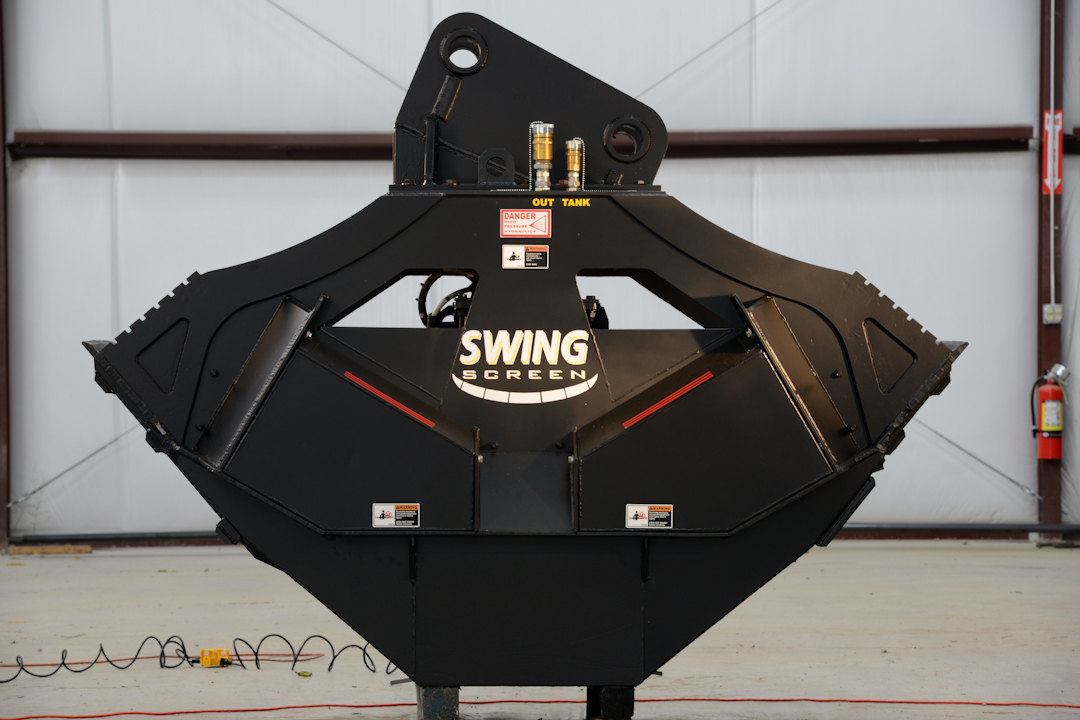

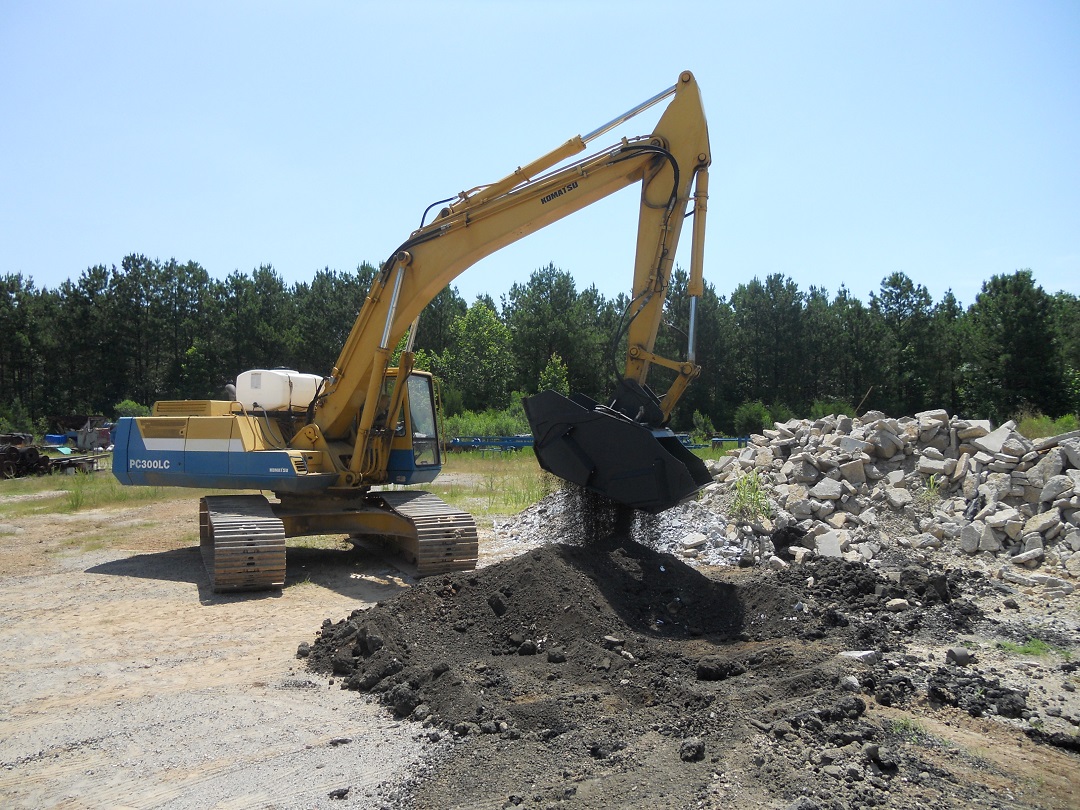

Swing Screen Vibrating Screening Buckets

SWING SCREEN™

““VIBRATING”” SCREENING BUCKET

BENEFITS and FEATURES:

•  The SWING SCREEN is the ONLY “VIBRATING” Single deck SCREENING ATTACHMENT IN THE WORLD!
• The SWING SCREEN PRODUCES BEAUTIFUL SCREENED MATERIAL!

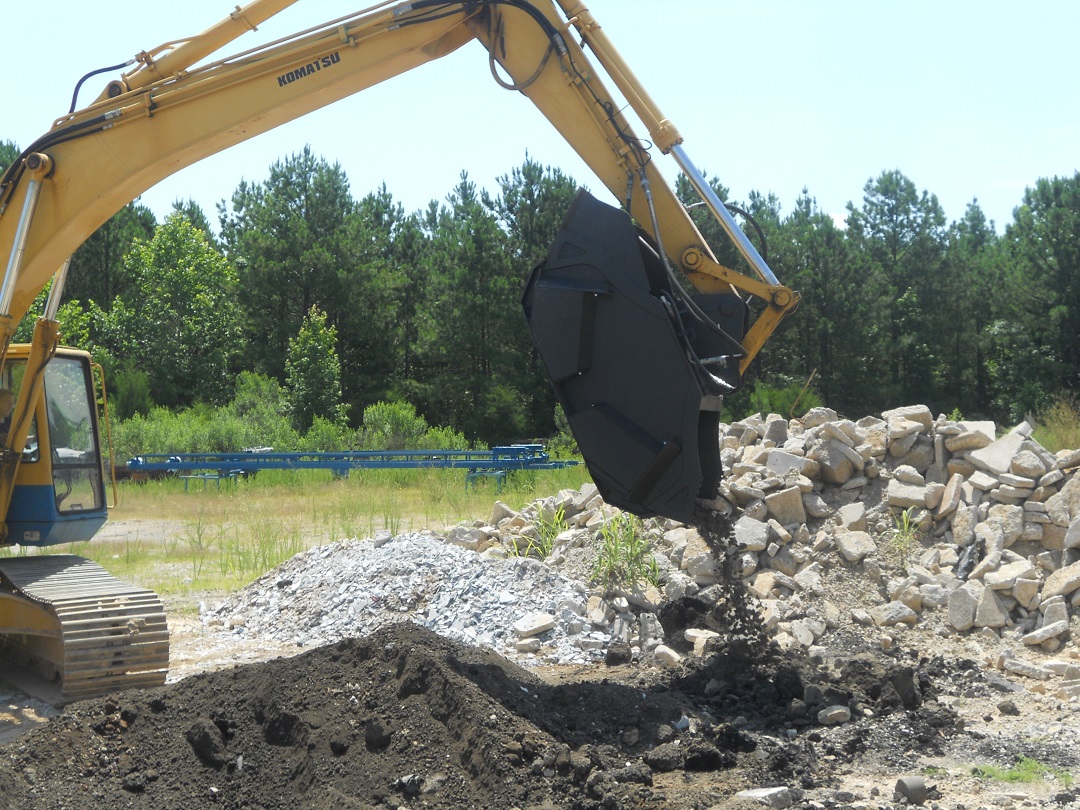

•  The SWING SCREEN will screen ANY MATERIAL that can be screened by a conventional portable vibrating screening plant. The SWING SCREEN can Screen ANYTHING from top soil to rocks!
•  The SWING SCREEN is the MOST VERSATILE SCREENING ATTACHMENT in the WORLD!  The SWING SCREEN can screen materials such as rock, river gravel, (sand & gravel), TOP SOIL, recycled concrete, asphalt millings or pieces, bricks, gold ore, iron ore, minerals, lightweight ash, coal, WOOD CHIPS, mulch, etc.. *We WILL TEST OPERATE the SWING SCREEN in your material prior to purchase! Simply send us a sample or visit us at the factory in SC.
•  The SWING SCREEN can produce up to (2) TWO products at the same time!

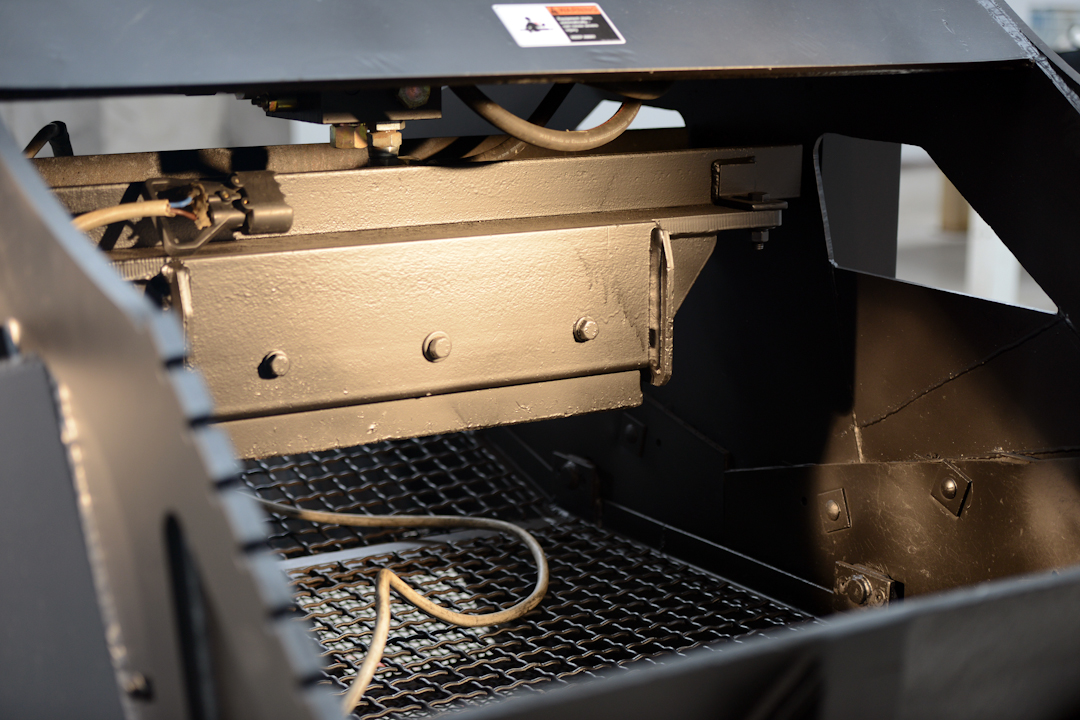

•  The SWING SCREEN has Removable/Replaceable screen panels that are available in an infinite amount of sizes and shapes from 4” to 1/8”!
•  UNLIKE TROMMEL/ROTATING SCREENs, the SWING SCREEN can be equipped with screen cloth that is much smaller than ¾”.  The SWING SCREEN has the WIDEST ASSORTMENT of SCREEN CLOTH AVAILABLE to suit nearly ANY APPLICATION!

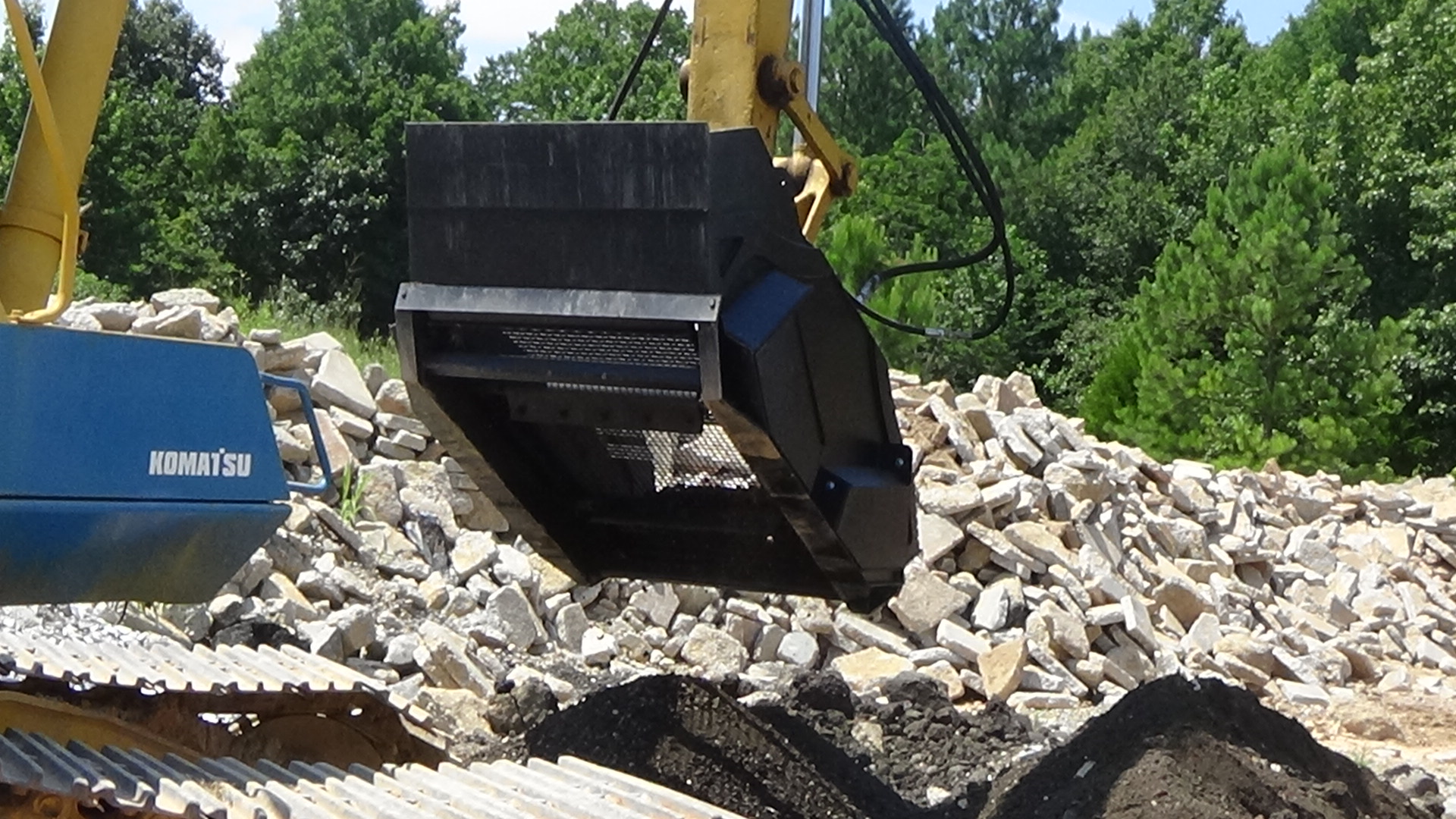

•  The SWING SCREEN is Easy to operate! It’s UNIQUE(Patent Pending) method of operation gives the operator complete control over the amount of time that the material stays on the screen! The operator can regulate the entire screening process! Operators can “SWING” back and forth while the screen is vibrating.  Oversize material will only be discharged when the operator determines the screened material is perfect!
•   Ie: Operators can SIMPLY “SWING” back and forth to ensure that all of the material is screened to perfection! By swinging back and forth, the screen cloth can clear itself allowing nearly all of the material to make contact with the screen cloth. This system ensures the HIGHEST QUALITY of finished screened material.
•   The SWING SCREEN has a HUGE Screen area to maximize production and efficiency! Approximately 24 SQUARE FEET!
• The SWING SCREEN’s screen cloth panels are less expensive and easier to change than trommel/rotating screen panels!
•  The SWING SCREEN can be equipped with an “OPERATOR CONTROLLED MAGNET” to remove steel such as rebar or wire. The magnet can be mounted to the SWING SCREEN.  The operator can turn the magnet on or off from inside the cab of the excavator

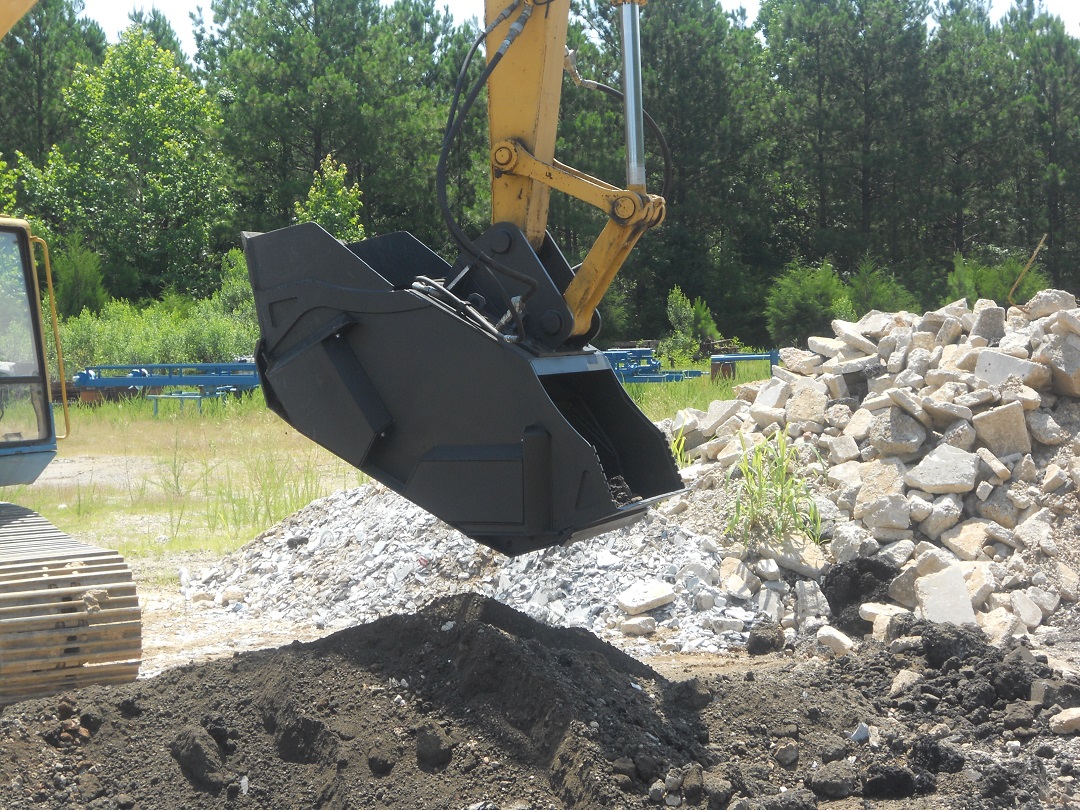

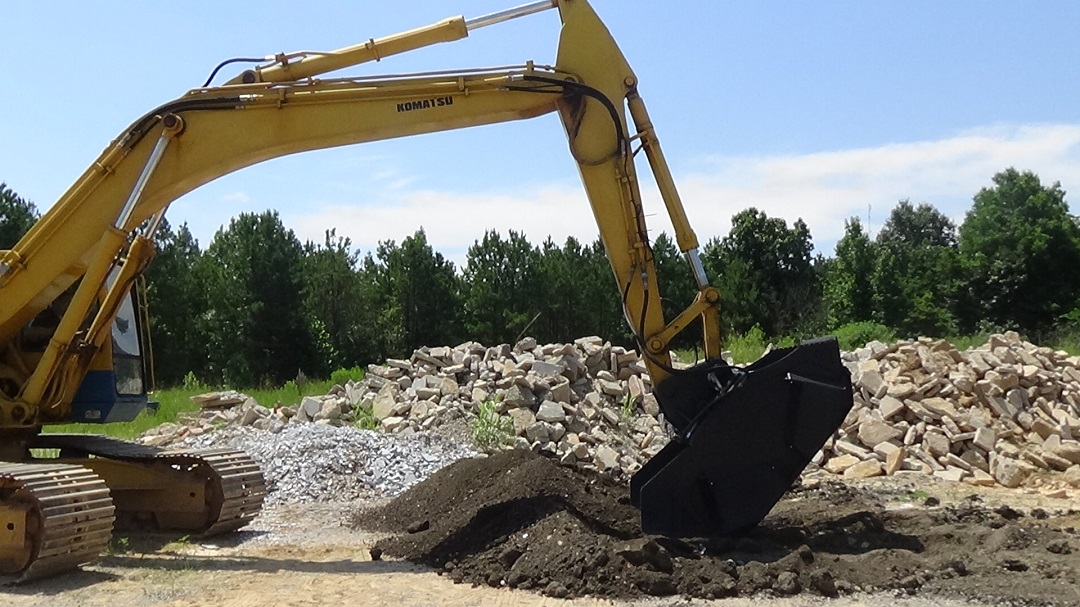

•  The SWING SCREEN can DIG AND SCOOP from BOTH SIDES!  DIG AND SCOOP like a SHOVEL or DIG towards you!  In addition, SCREENED MATERIAL can be DISCHARGED/ Dumped from one side or BOTH sides of the screen! This SYSTEM of “DIGGING/DISCHARGING” from either side creates MAXIMUM EFFICIENCY and PRODUCTION! The “FLUID MOTION” of digging and then discharging has NO WASTED MOVEMENTS!

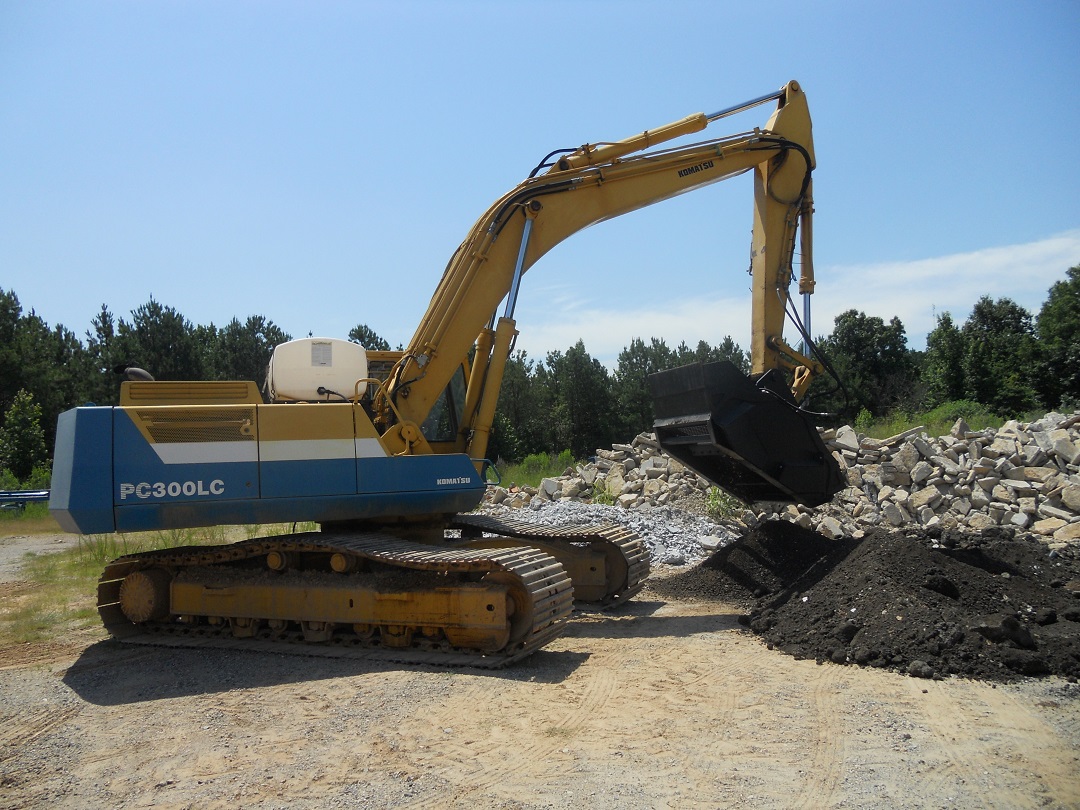

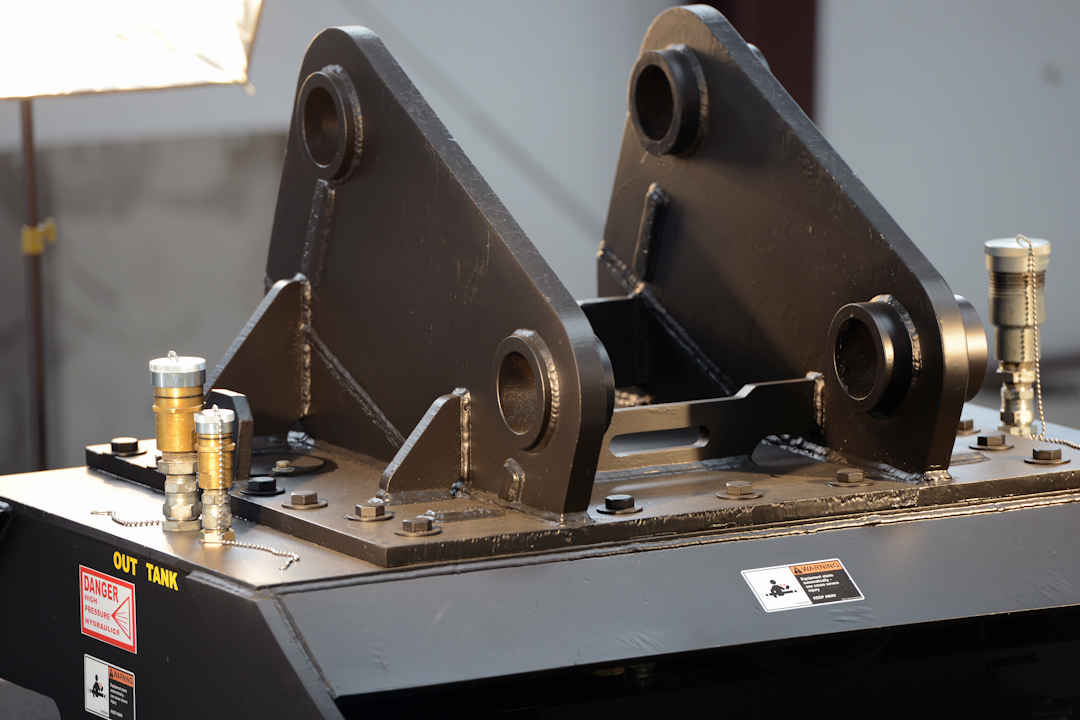

•    The SWING SCREEN has a “Bolt-on” Universal Mount that can be adapted to fit any excavator from 10-30 ton capacity.
•  The SWING SCREEN Operates off the existing excavator hydraulic system. In most cases, it will work off the same hydraulic system that operates a hydraulic hammer.
• The SWING SCREEN’s “”VIBRATION”” is adjustable and can be increased or decreased to ensure the best screening effect.
• The SWING SCREEN has the least amount of moving parts to ensure ease of maintenance and longevity.
•  The SWING SCREEN has very little spillage to avoid contaminating the screened/separated material.  Nearly everything that is scooped up will be screened.  It has less spillage than any other screening bucket attachment.
•  The SWING SCREEN is an INCREDIBLE VALUE! One SIMPLE ATTACHMENT with ONE OPERATOR can SCREEN nearly ANYTHING!
• The SWING SCREEN can be used in tandem with any “crushing bucket attachment”. It can be used to pre-screen or screen after crushing.
• The SWING SCREEN can be positioned over a ditch or pipe to allow screened material to simply fill in the ditch while screening.
•  The SWING SCREEN can be positioned over a truck to load the truck while screening!
• The SWING SCREEN is Made in the USA!
