Okada ORG Series Heavy Duty Rotating Demolition Grapple
Okada ORG Series Heavy Duty Rotating Demolition Grapple
Starting At
$17,900
Main Specs
| Brand | Okada |
| Make | ORG Series |
| Model | 8R, 14R, 23R, 32R, 40R, 47R, 51R, 57R, 64R, 81R |
Highlights
- Load Control Valve – The hydraulic cylinders are fitted with a load control valve which protects against unexpected opening of the shells
- 360 degree rotation
- Replaceable teeth / blades
- Quick maintenance
- Reinforced structure of the machine body
Additional Information

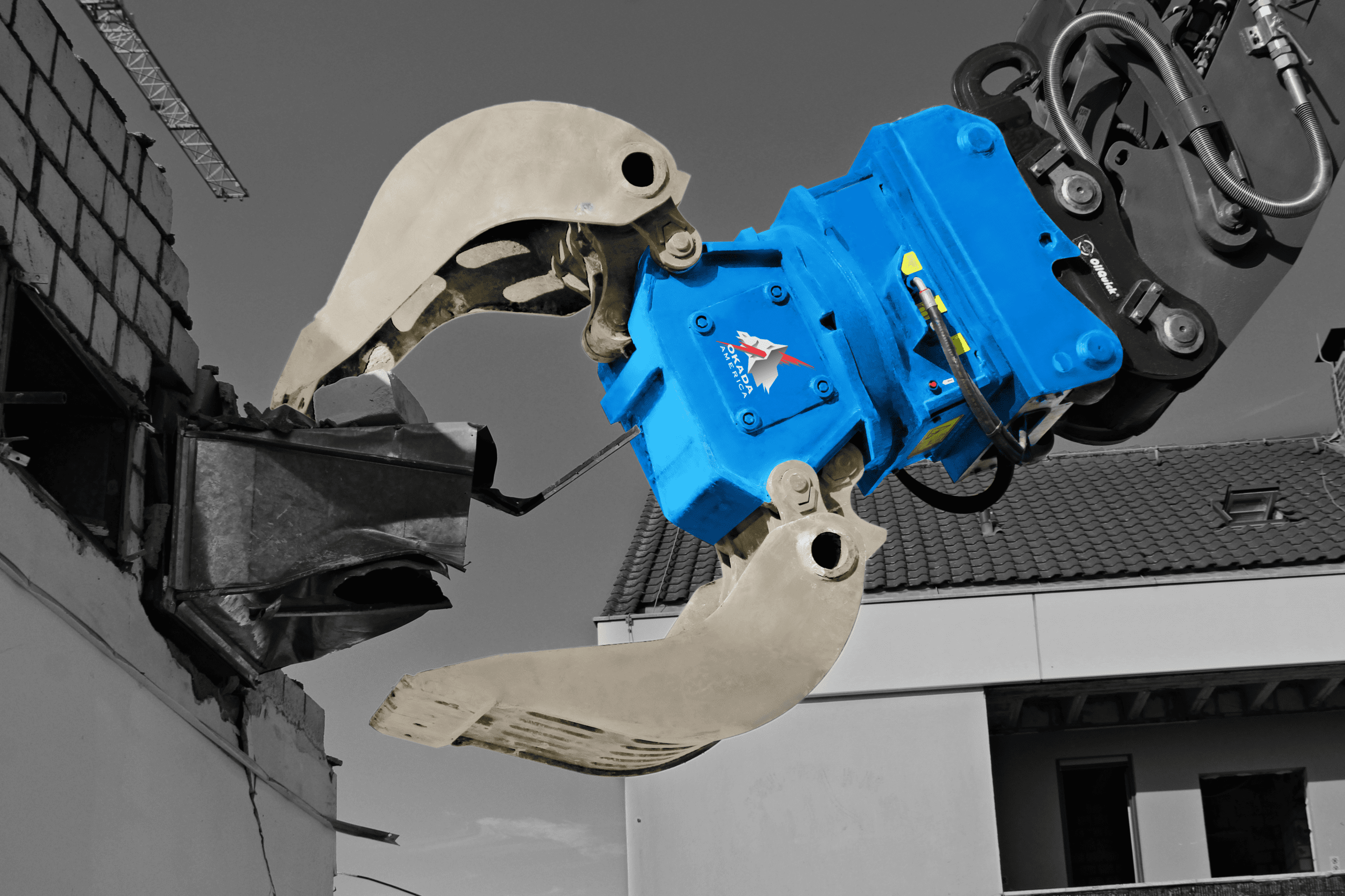

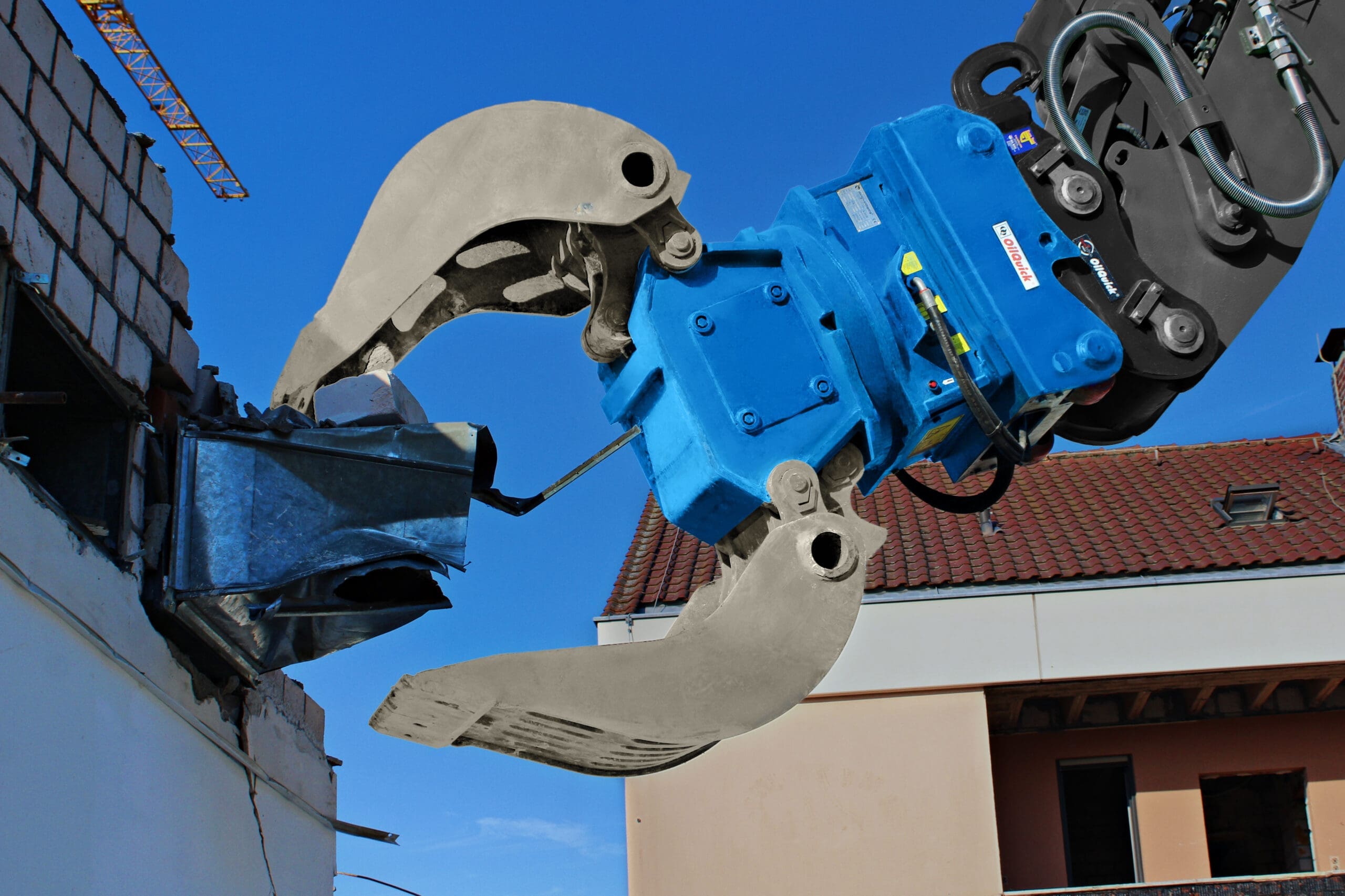

The Okada HD Rotating Grapple, is an indispensable piece of equipment designed to tackle the diverse demands of construction and demolition sites with unparalleled efficiency and precision. With its robust design and advanced features, the Okada HD Rotating Grapple effortlessly performs tasks ranging from material handling and demolition to sorting, clearing debris, site preparation, and loading/unloading operations. Engineered to excel in even the most demanding environments, this grapple revolutionizes workflows, making every job easier and more streamlined.
Application
- Material Handling (concrete • steel • wood • debris • other construction material)
- Demolition of Structures (breaks apart concrete and the dismantling of large structures)
- Sorting and separating materials for recycling and disposal
- Clearing debris and waste from jobsites
- Site preparation
| ORG DEMOLITION GRAPPLE – 360° rotation | |||||||||||
| The Okada HD Rotating Grapple, is an indispensable piece of equipment designed to tackle the diverse demands of construction and demolition sites with unparalleled efficiency and precision. With its robust design and advanced features, the Okada HD Rotating Grapple effortlessly performs tasks ranging from material handling and demolition to sorting, clearing debris, site preparation, and loading/unloading operations. Engineered to excel in even the most demanding environments, this grapple revolutionizes workflows, making every job easier and more streamlined. | |||||||||||
| Model | Weight* (lbs) |
Opening (in) |
Height (Open) (in) |
Jaw Length (in) |
Volume (ft³) |
Operating Pressure (psi) |
Carrier Range (lbs) |
||||
| ORG8R-HD | 829 | 43 | 32 | 20 | 3.5 | 3625 | 6,600-13,000 | ||||
| ORG14R-HD | 1359 | 59 | 43 | 24 | 7.1 | 3625 | 11,000-17,000 | ||||
| ORG18R-HD | 1828 | 65 | 45 | 24 | 10.6 | 4350 | 15,000-24,000 | ||||
| ORG23R-HD | 2277 | 67 | 45 | 32 | 14.1 | 4640 | 24,000-33,000 | ||||
| ORG32R-HD | 3156 | 79 | 53 | 30 | 17.7 | 5075 | 30,000-39,000 | ||||
| ORG40R-HD | 3487 | 79 | 53 | 39 | 24.7 | 5075 | 39,000-48,000 | ||||
| ORG47R-HD | 3685 | 83 | 54 | 39 | 28.3 | 5075 | 46,000-55,000 | ||||
| ORG51R-HD | 5118 | 88 | 59 | 47 | 31.8 | 5075 | 55,000-66,000 | ||||
| ORG57R-HD | 5692 | 88 | 59 | 51 | 35.3 | 5075 | 66,000-77,000 | ||||
| ORG64R-HD | 6227 | 88 | 59 | 53 | 38.8 | 5075 | 77,000-88,000 | ||||
| ORG81R-HD | 8068 | 97 | 62 | 59 | 47.7 | 5075 | 88,000-110,000 | ||||
